Configuring SSO with Microsoft Entra ID

This guide provides instructions on how to configure Single Sign On for NLPatent using Microsoft Entra ID as an identity provider. If you have any questions about this gude while you are going through it, feel free to reach out to your NLPatent account manager or emails support@nlpatent.com.

Service Provider Configuration

To configure NLPatent as a service provider on Microsoft Entra ID, follow the steps below.

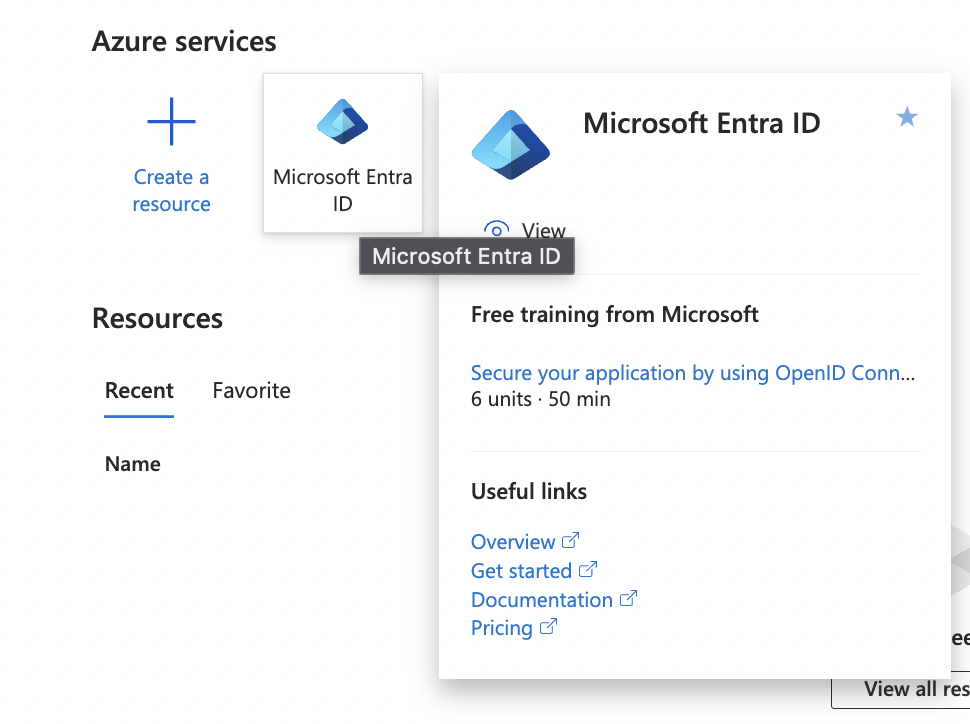

1. On your Azure Portal homepage, click the Microsoft Entra ID resource as shown in the image below

2. Then click on the “Enterprise applications” link on the left side of the Entra ID page

3. You’ll be taken to a page which lists all your existing Microsoft Entra ID applications. Click the “Create your own application” link at the top of the page to create a new application.

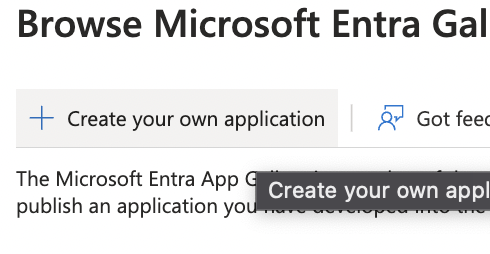

4. On the next page, you’ll see a list of pre-configured Microsoft Entra ID applications. For now, we don’t need any of these, we need a custom configured Microsoft Entra ID application, so we will click on the “Create your own application” link at the top of the page:

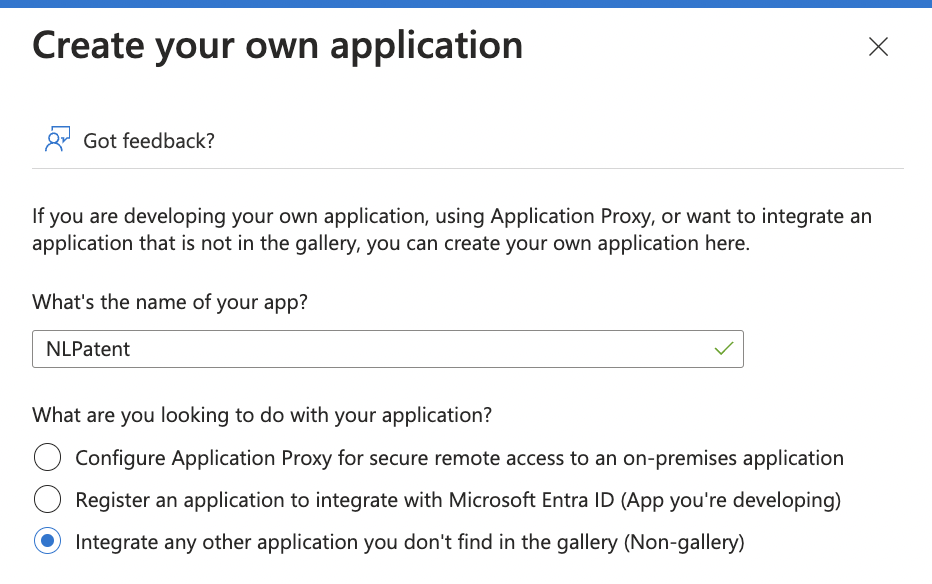

5. On the “Create your own application” popup, fill in the form to match the image below, and then click create at the bottom of the popup.

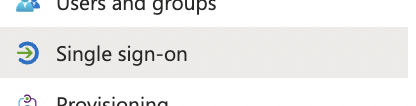

6. On clicking “Create”, you will be redirected to a new page to configure the application you just created. On that page, click the “Single sign-on” link on the left side of the page.

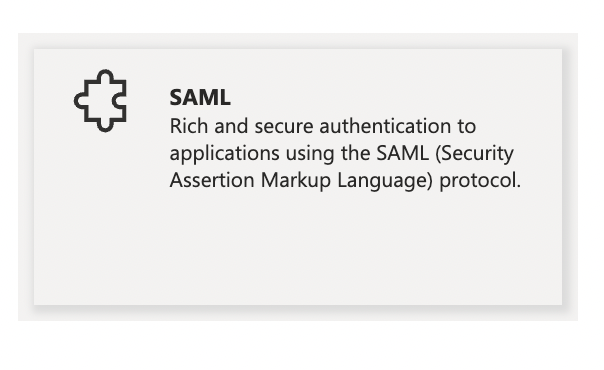

7. Then click on the SAML button on the Single sign-on page as shown in the image below:

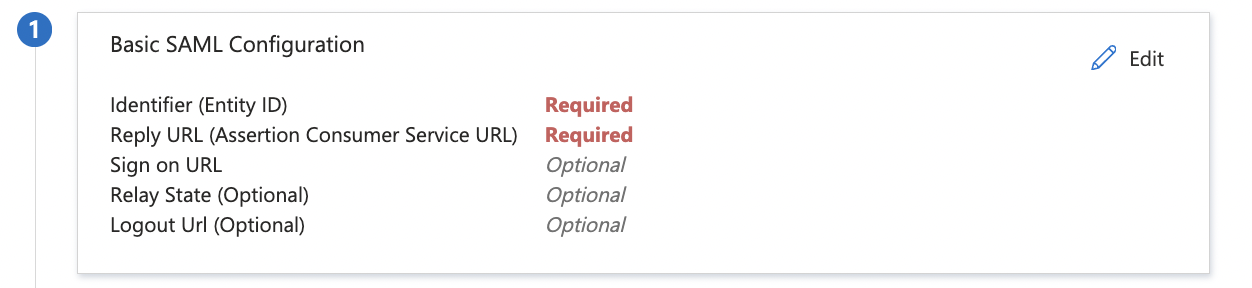

8. You should now be redirected to the SSO configuration page. The first section on the page allows you set up the basic SAML connection parameters. Fill in these fields with the values below.

• Identifier (Entity ID): https://api.nlpatent.com/auth/sso/metadata
• Reply URL (Assertion Consumer Service URL): https://api.nlpatent.com/auth/sso/acs
• Sign on URL: This is a URL that's unique to your client organization. You can find this URL by visiting your NLPatent SSO Configuration page.

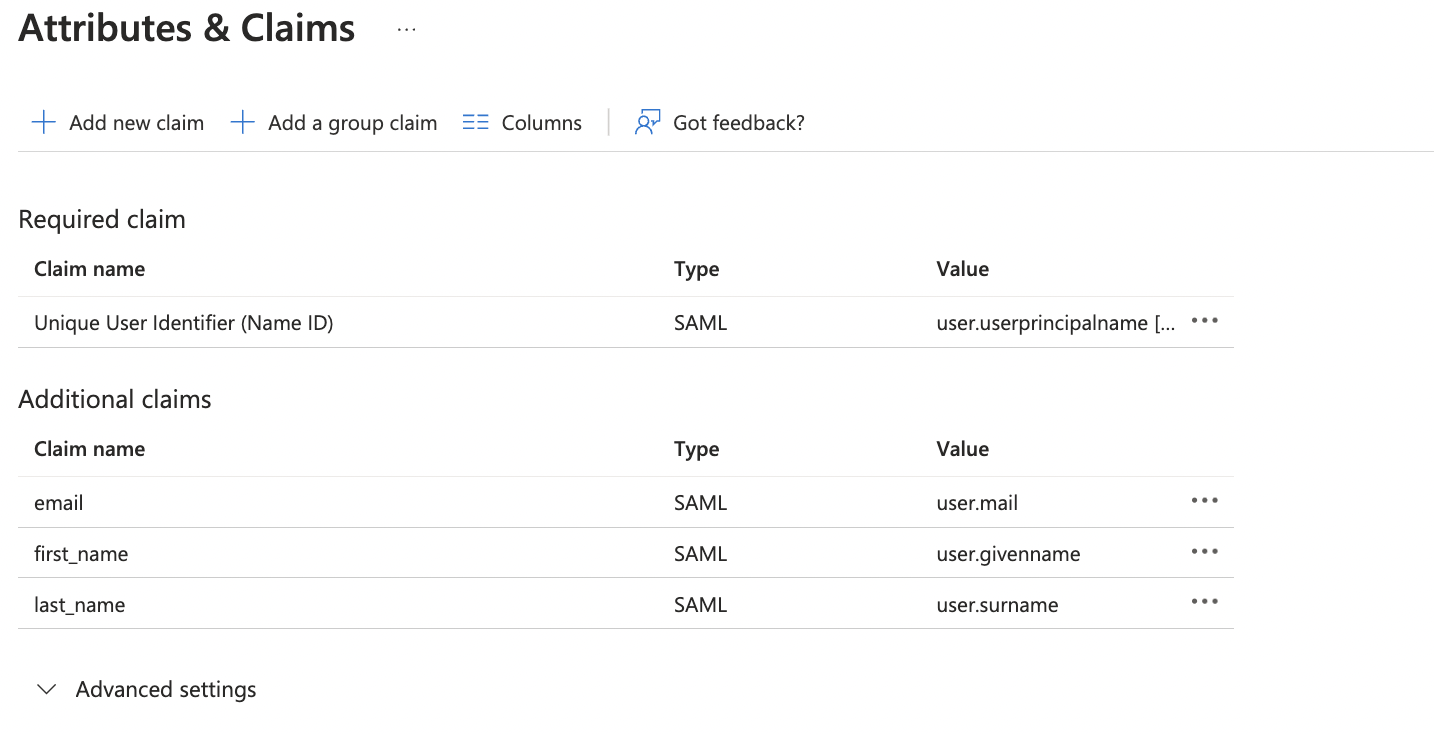

9. For the “Attributed & Claims” section, we require three attributes named email , first_name and last_name . Edit these attributes to map them to the correct fields in your user directory. Make sure to enable "Expose claim in JWT tokens in addition to SAML tokens" under "Advanced SAML claims options" for the three additional claims.



   Once done it should look something like this:

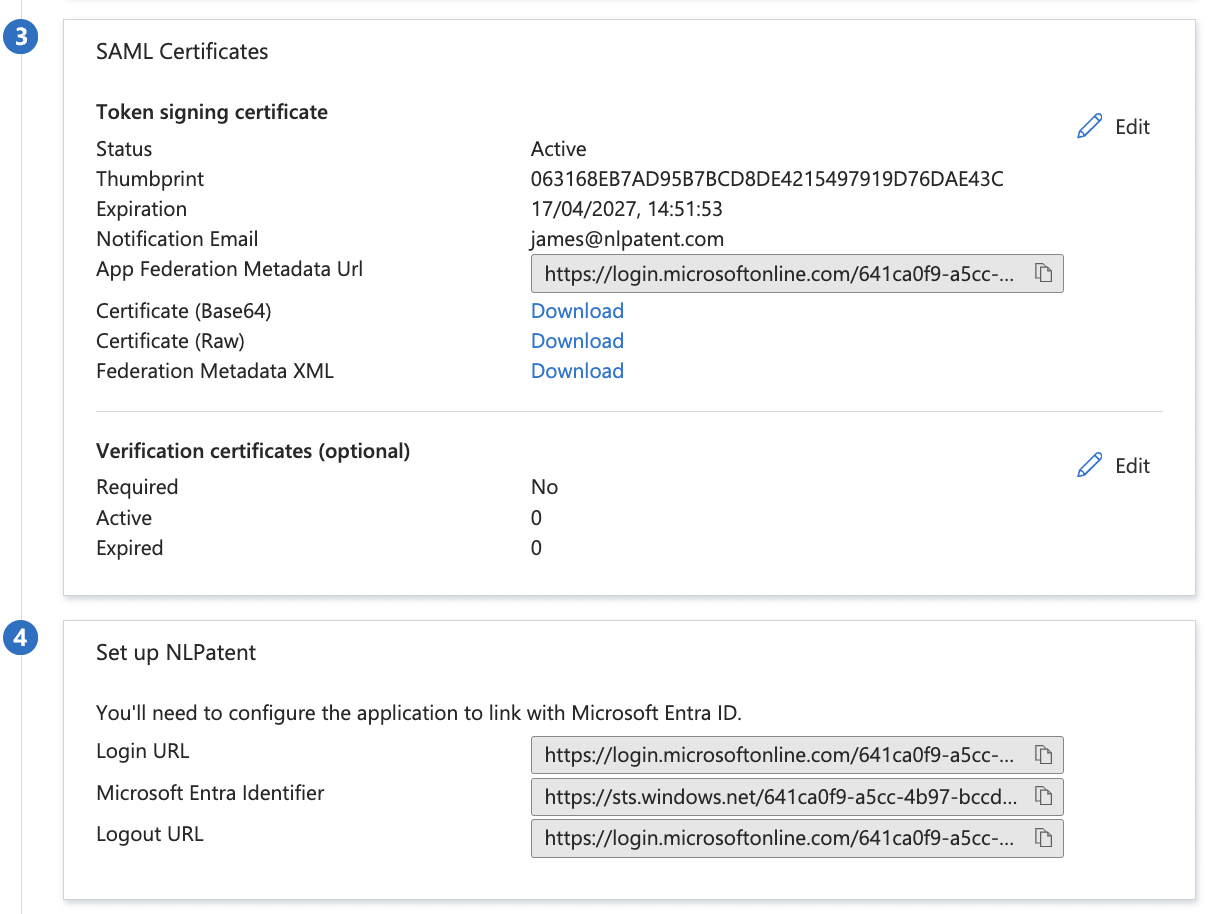

10. Finally, enter your new SAML app's configuration in the NLPatent SSO Configuration page. You will need to have an NLPatent admin account to configure this page.

• In the "Entity ID" field enter your Microsoft Entra Identifier.
• In the "SSO Target URL" enter your Login URL
• In the x509 Certificate field, download the Certificate (Base64) file and copy and paste the entire contents of this file into this field.

Testing The Integration

There are three ways to login using SSO. Below explains each of the three different methods and how to test it.

Microsoft Apps Login

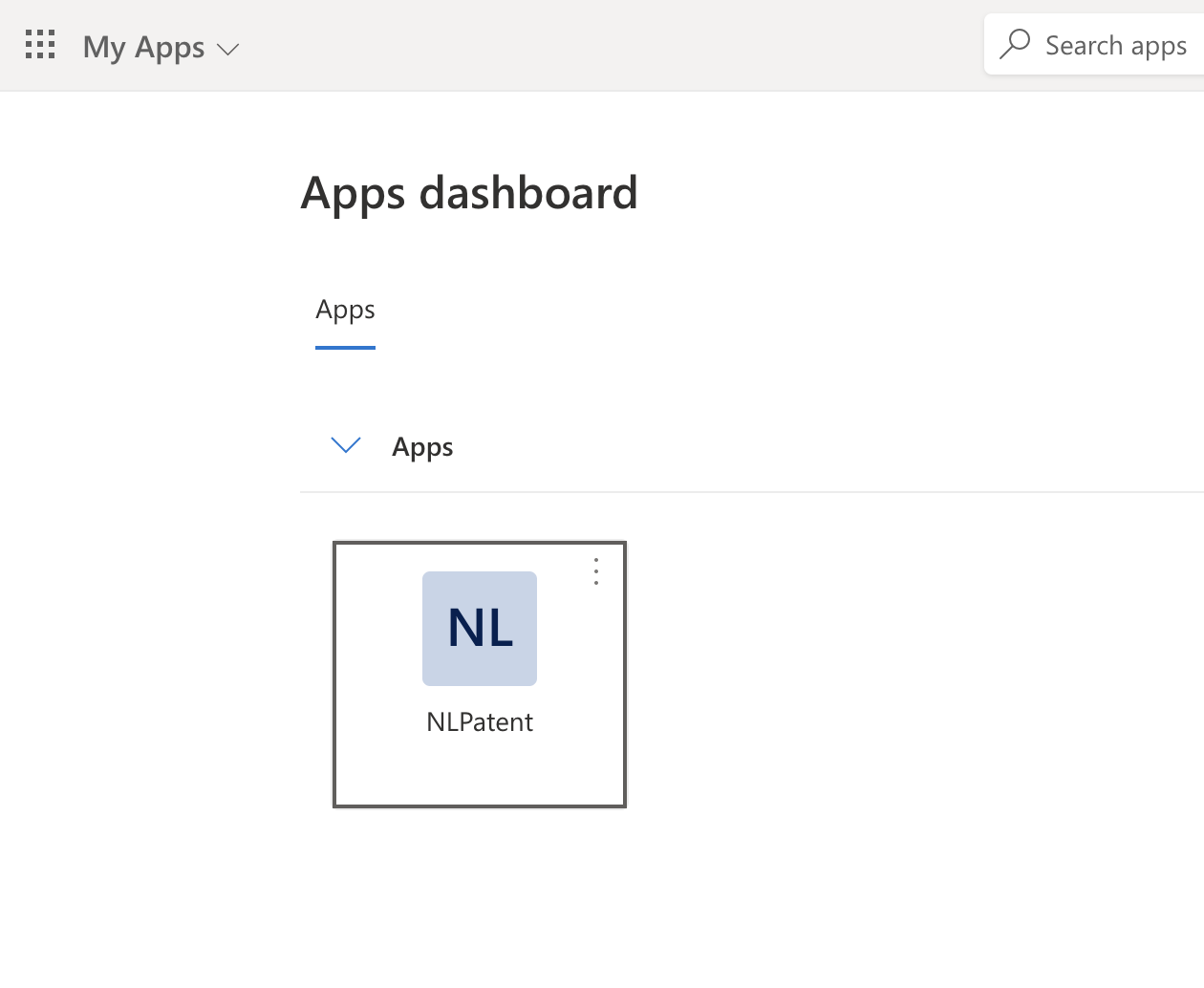

If you go to https://myapplications.microsoft.com/ you should now see a new app called NLPatent. Clicking on this app should allow you to login to the NLPatent platform through your Microsoft account. If a user who does not have an NLPatent account uses this method to login, we will automatically create an account for them.

NLPatent UI Login

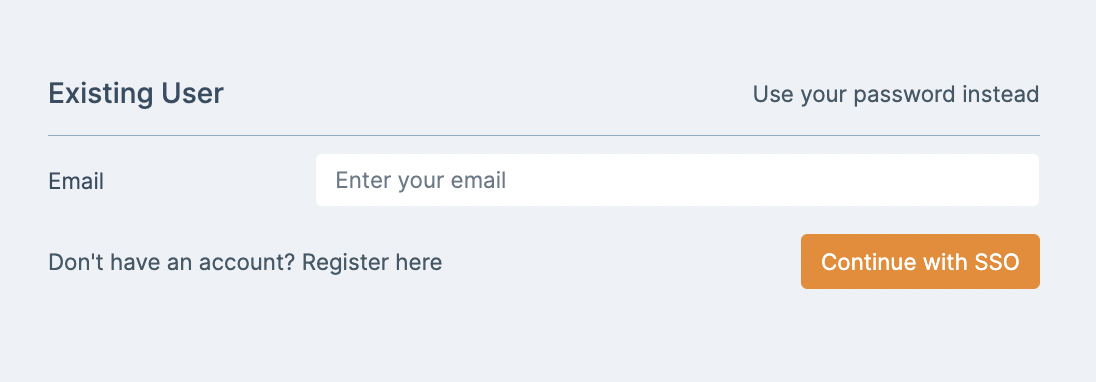

For users who already have an NLPatent account, they can go to https://search.nlpatent.com/login?sso=true and enter their email address to login to the NLPatent platform via SSO.

Enter your NLPatent email address and you should be redirected to Microsoft Entra ID to complete the authentication process.

Using your "Start URL"

In step 8, you added a "Sign on URL" to your Entra app. You can also use this URL to login to the NLPatent application. This is useful if you'd like to bookmark a link to the app.

Further Configuration Options

Disabling Username + Password Login

Once you've confirmed that your SSO integration is working correctly, you will probably want to disable username/password authentication for your account so that the only way users can login to your account is through SSO.

To do this, check the "SAML Login Only" option in the SSO Configuration page and save your configuration.

Disabling Automatic Account Provisioning

By default, new users will be automatically provisioned in the NLPatent platform when signing in via SSO (assuming you have available seats in your plan). If you do not want new users to be automatically provisioned, then check the following option in your SSO Configuration page.
